Description

WARNING: While MAF does not sell firearms, this kit contains some dept. of commerce EAR/former ITAR-regulated components. As such we can not ship this item outside of the United States, and by ordering, you certify that you WILL NOT export the item.

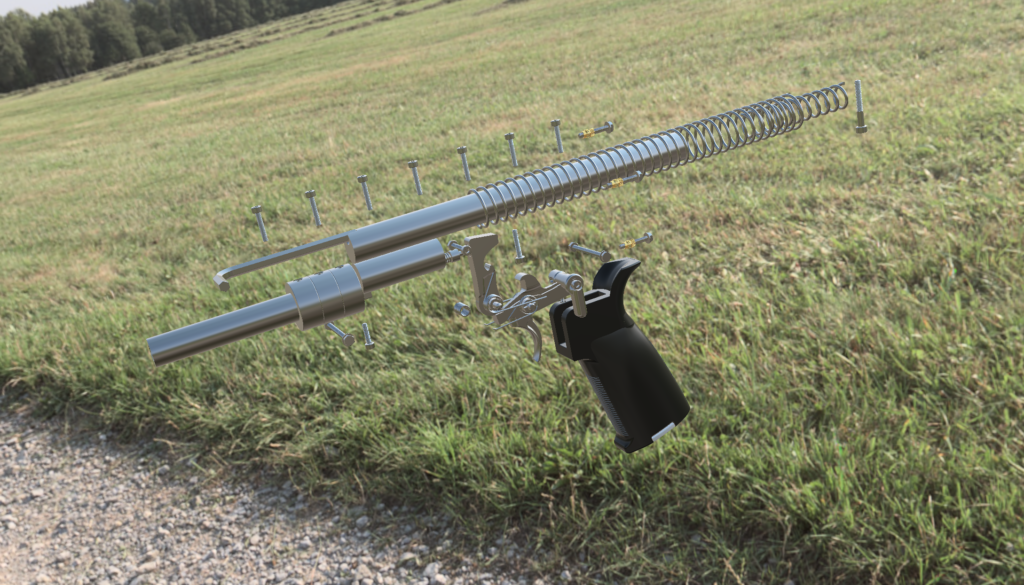

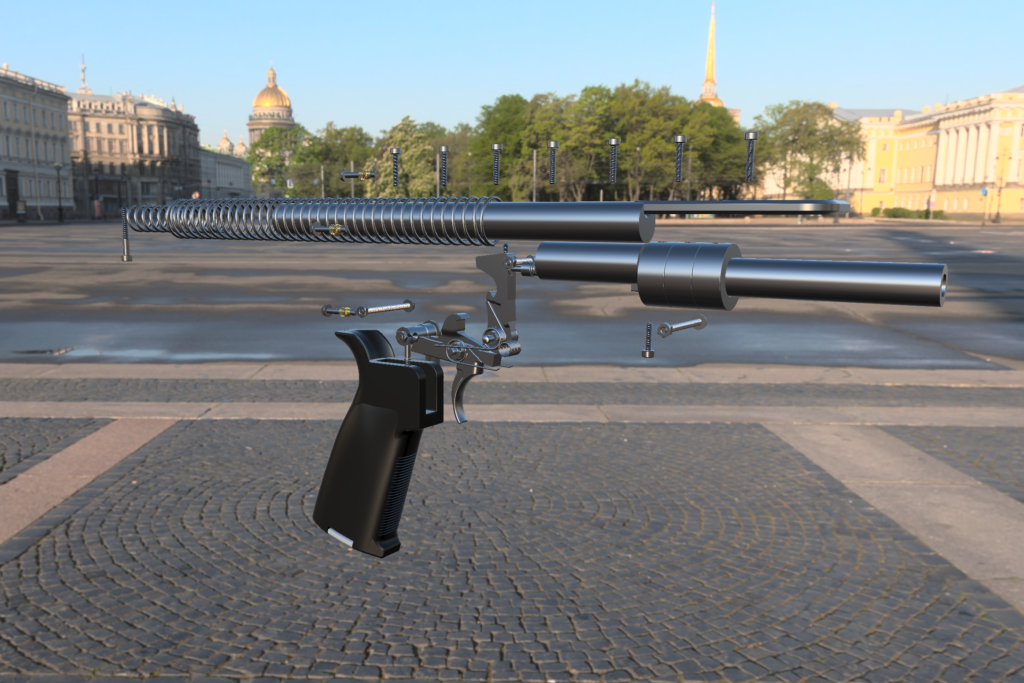

Here it is: the FGC9 MKII Kit

Put your hands to work with this fully DIYable build!

Bundle Contains

• 4.5-inch Barrel
  • Chambered in 9mm
  • 1/2 x 28 thread
• 1 Bolt Assembly – Note: There is no notch for the charging handle. You will either need to cut the notch or the charging handle to fit.
  • With Firing Pin
• 1x Hardware Set
  • 4x M3 Thread Inserts
  • 1x Neodymium Magnet
  • 1x Firing Pin Spring
  • Buffer Spring – Tuning by trimming 1-3 rings from the spring is recommended based on your preference. No secondary spring is required.
  • Firing Pin Spring
  • (Mag catch spring)
  • 1x Hex Key
  • 3x Nut M3
  • 10x Washer M3
  • 1x External-Tooth Lock Washer M6
  • 1x Socket Head Screw M6 25mm
  • 1x Socket Head Screw M4 30mm
  • 6x Hex Head Screw M3 40mm
  • 4x Hex Head Screw M3 20mm
  • 1x Socket Head Screw M3 20mm
  • 10x Socket Head Screw M3 16mm
  • 1x Socket Head Screw M3 12mm

•

  Floral Goodtimes Chimes Assembly Instructions

  1 file(s) 1,004.49 KB

  Download
